How Do Axle Scales Work

Published on September 24th, 2025 at 03:50 am

In fields such as transportation, logistics, construction, and law enforcement, weight management of heavy-duty vehicles has always been a key link in ensuring safety, compliance, and efficiency. Axle scales, as indispensable professional equipment in this link, accurately measure the weight of individual axles of vehicles. They not only help determine whether vehicles comply with legal weight limits but also optimize load distribution, providing reliable data support for industrial operations. This article will comprehensively analyze this important equipment from the aspects of the definition, classification, differences between dynamic and static types, working principles, and applications of axle scales.

What Are Axle Scales?

Axle scales are weighing devices specifically designed for heavy-duty trucks. Their core function is to measure the weight carried by each axle of a vehicle and calculate the total vehicle weight (i.e., gross weight) by summing up the weights of individual axles. Unlike ordinary weighing equipment, axle scales focus on the “axle” as a key unit, enabling them to accurately capture the distribution of vehicle weight across various axles. They also maintain high-precision measurement capabilities over the long term—even in complex environments such as construction sites and temporary inspection points, they can continuously output reliable data.

In practical applications, axle scales also support diversified function expansions. For example, weighing data can be transmitted to a computer for archiving and analysis, and some models even allow on-site receipt printing, facilitating users to quickly complete compliance records and further enhancing the convenience of the weighing process.

Categories of Portable Axle Scales

Axle scales can be divided into fixed and portable types based on installation methods. Among them, portable axle scales have become the first choice for many temporary weighing needs due to their high flexibility and wide application scenarios. From the perspective of functions and applicable scenarios, portable axle scales can be mainly classified into the following categories:

(1) Classification by Number of Weighable Axles

Portable dynamic axle scales are divided into three categories—single-axle weighing scales, double-axle weighing scales, and triple-axle weighing scales—based on the number of axles that can be measured simultaneously:

Single-axle weighing scales: These scales only measure the weight of a single axle of a vehicle. With a compact structure, they are suitable for scenarios requiring precise verification of the load on a specific axle, such as checking overloading of a particular axle during law enforcement.

Double-axle weighing scales: Capable of measuring the weight of two axles of a vehicle at the same time, these scales are adapted to common double-axle trucks, reducing the number of vehicle passes and improving weighing efficiency.

Triple-axle weighing scales: Supporting simultaneous weighing of three axles, these scales are specifically designed for multi-axle heavy-duty vehicles (such as large trailers and engineering trucks). They can complete multi-axle weight collection in one go, significantly saving operation time.

(2) Classification by Weighing Mode

Portable axle scales also cover both static and dynamic modes:

Portable static axle scales: Vehicles need to park on the scale body to complete weighing. They are suitable for scenarios with extremely high precision requirements, such as accurate calculation of cargo weight in factory loading and unloading areas.

Portable dynamic axle scales: Vehicles can complete weighing by driving over the scale at a low speed (approximately 3 miles per hour) without stopping. They are more suitable for scenarios requiring rapid turnover, such as temporary inspection points and construction sites.

In addition, all portable axle scales are made of aluminum alloy. This material not only makes the equipment lighter and easier to carry but also avoids the problem of easy damage to steel, extending the service life of the equipment. At the same time, their cost is lower than that of fixed axle scales, offering a significant cost-performance advantage.

Differences Between Dynamic and Static Axle Scales

The core differences between dynamic and static axle scales lie in three aspects: “vehicle status during weighing,” “efficiency,” and “applicable scenarios,” as detailed in the following comparison table:

In short, the core advantage of dynamic axle scales is “speed,” making them suitable for mobile scenarios where efficiency is a priority. The core advantage of static axle scales is “accuracy,” making them suitable for fixed scenarios with strict precision requirements. Users can choose flexibly according to actual needs.

Working Principle of Axle Scales

The working principle of axle scales revolves around “strain gauges sensing pressure and automatic data calculation.” Whether it is fixed or portable, dynamic or static, the core logic is consistent, with the following specific steps:

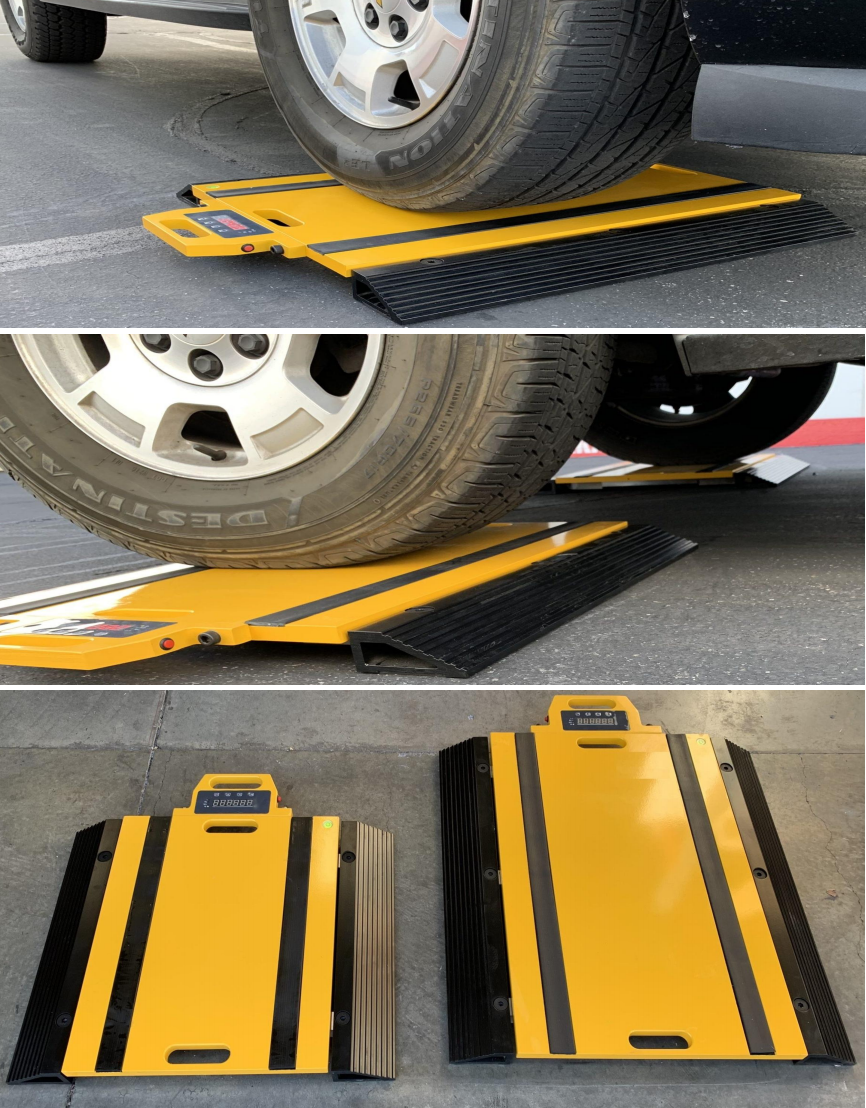

1. Equipment Deployment: Place the core component of the axle scale—the wheel load scale—on a flat ground in front of the vehicle. Ensure the scale body is closely attached to the ground to avoid data inaccuracies caused by tilting.
2. Vehicle Passage: For dynamic weighing, the vehicle drives over the scale at a low speed of 3 miles per hour; for static weighing, the vehicle parks steadily on the scale body.
3. Pressure Sensing: When the vehicle’s tires come into contact with the scale body, the metal plates on the surface of the scale will bend slightly due to the vehicle’s weight. The “strain gauges” attached to the metal plates capture the mechanical stress caused by this bending and convert the stress signal into a measurable electrical signal.
4. Axle Weight Calculation: Based on the magnitude of the stress, the strain gauges automatically calculate the weight of the corresponding wheel. Since each axle is usually equipped with 2-4 wheels, the system sums the weights of all wheels on a single axle to obtain the “axle load.”
5. Total Weight Summation: Finally, the system sums the weights of all axles to get the “gross weight” of the vehicle. The entire process is fully automated without manual intervention, and the data can be directly displayed or transmitted to a computer.

Applications of Axle Scales

The applications of axle scales center on three cores: “compliance management,” “efficiency improvement,” and “safety assurance,” which can be specifically divided into the following categories:

(1) Compliance Verification: Preventing Overloading Violations

Traffic regulations have clear limits on the axle weight and total weight of heavy-duty vehicles. Overloading not only leads to penalties but also accelerates road wear and increases safety hazards. Axle scales can quickly verify the single-axle weight and total weight of vehicles. In particular, dynamic axle scales can complete random checks without affecting vehicle traffic, making them a core tool for law enforcement agencies and highway weigh stations to control overloading.

(2) Load Optimization: Ensuring Transportation Safety

By measuring the weight of each axle with an axle scale, it is possible to determine whether the vehicle’s load is balanced. If the weight of a certain axle is too high, it may cause excessive tire wear and longer braking distances; if the load is unbalanced, it may also cause the vehicle to deviate during driving. Enterprises can adjust the placement of goods based on axle weight data to optimize load distribution and reduce the risk of transportation accidents.

(3) Accurate Measurement: Supporting Production and Logistics

In scenarios such as factories and freight stations, static axle scales can accurately measure the total weight of goods and vehicles. The actual weight of goods is calculated by subtracting the “empty vehicle weight” from the “loaded vehicle weight,” providing accurate data for trade settlement and inventory management. Portable axle scales, on the other hand, can be used in construction sites and remote logistics points to solve the problem of “inaccessible fixed weighing equipment,” ensuring weight management in production and logistics links is not interrupted.

(4) Cost Control: Reducing Operational Losses

Axle scales do not require continuous power supply—most models can be used for a long time after charging, reducing energy consumption costs. At the same time, by preventing overloading, the wear and tear of vehicle tires and engines can be reduced, extending the service life of vehicles and indirectly helping enterprises save maintenance and replacement costs.

Summary of Core Information About Axle Scales

As a core device for weight management of heavy-duty vehicles, axle scales have “precision, flexibility, and efficiency” as their core advantages. Their value can be summarized as follows:

Functionally: They can measure single-axle weight and total weight, support both static and dynamic modes, and some models can expand functions such as data transmission and receipt printing to meet diversified needs.

Classification: Divided into fixed and portable types based on installation methods; portable types can be further divided into single-axle, double-axle, and triple-axle models according to the number of axles, adapting to various vehicle types from ordinary trucks to large trailers.

Scenarios: Covering law enforcement, logistics, construction, factories, and other fields, they not only solve the efficiency problem of “rapid overloading checks” but also meet the precision requirement of “accurate measurement.”

Advantages: Portable models made of aluminum alloy have low cost, easy portability, and strong durability; dynamic models do not require parking and have high efficiency; static models have high precision; and the overall equipment has low energy consumption and outstanding cost performance.

Whether it is to ensure road safety and compliant operations, or to optimize enterprise costs and improve efficiency, axle scales have become an indispensable tool in modern heavy-duty vehicle management. Their technical characteristics and scenario adaptability will also enable them to continue playing an important role in the future logistics and engineering fields.
